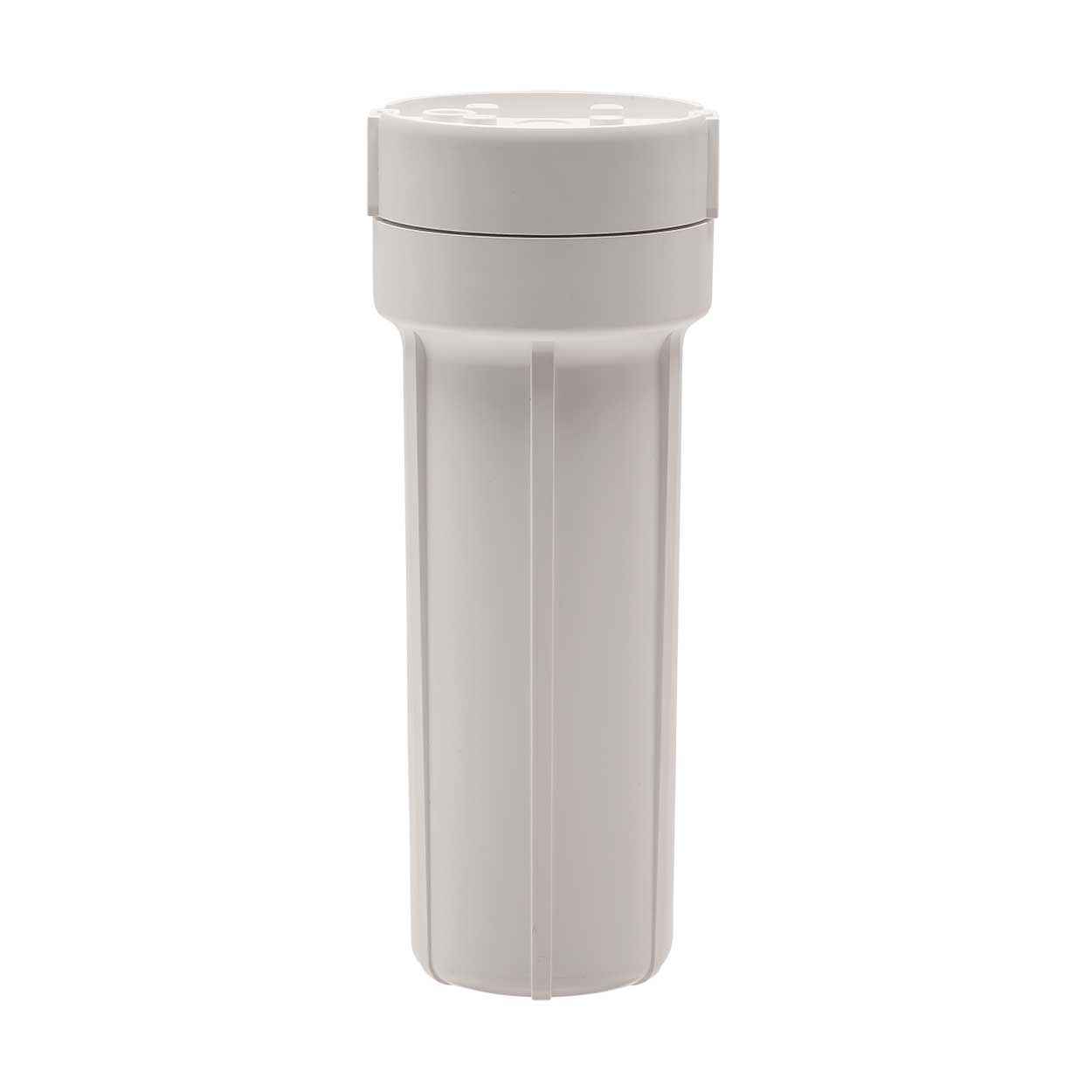

Traditional Slim Line Series Filter Housings
An excellent choice for low-flow applications and when space and chemical compatibility are primary concerns.
Slim line filter housing are available in either reinforced polypropylene or clear Styrene-Acrylonitrile (SAN) in 5’, 10” and 20” lengths. The black or blue reinforced polypropylene housing caps are available with ¼”, 3/8” or ½” NPT connections. Four bosses are molded into every cap for mounting purposes. They are equipped with a black, reinforced polypropylene cap and offer an optional pressure-relief button on the inlet side to relieve pressure inside the housing when changing filter cartridges. Opaque Slim Line Filter Housings, molded from rugged reinforced polypropylene, offer outstanding chemical compatibility and are ideal for use in a variety of low-flow applications. These applications include under-sink and countertop residential filtration, pre-and -post reverse osmosis filtration, recreational vehicle filtration, food service and humidifying systems. Clear Slim Line Filter Housings offer on-site examination of flow, performance, and cartridge life. They are also ideal for a variety of applications.
FEATURES/BENEFITS
Slim design reduces space required for installation without sacrificing capacity
Available in 5”, 10” and 20” lengths
Optional pressure relief button on inlet side of cap
Available with clear or opaque sumps
SPECIFICATIONS
Housing – Polypropylene (opaque) or Styrene Acrylonitrile (clear)
Cap – Reinforced Polypropylene
Button Assembly – 300 Series Stainless Steel, EPDM, and Polypropylene
O-Ring – Buna-N
Temperature Rating – 40-125 degree F (4.4-51.7 degree C)
Maximum Pressure – 125 psi (8.6 bar)
SPECIFICATIONS AND PERFORMANCE
| PART | DESCRIPTION | MAXIMUM DIMENSIONS | INITIAL (PSI) @ FLOW RATE (GPM) |
|---|---|---|---|
| 158125 | 1/4” #10 Slim Line White/White w/o PR | 11.75” x 4.38” (298 mm x 111 mm) | 2 psi @ 5 gpm (0.14 bar @ 19 lpm) |
| 158182 | 1/4” #10 Slim Line White/White w/PR | 11.75” x 4.38” (298 mm x 111 mm) | 2 psi @ 5 gpm (0.14 bar @ 19 lpm) |
| 158149 | 3/8” #10 Slim Line White/White w/PR | 11.75” x 4.38” (298 mm x 111 mm) | 2 psi @ 5 gpm (0.14 bar @ 19 lpm) |
| 158098 | 3/8” #10 Slim Line White/White w/o PR | 11.75” x 4.38” (298 mm x 111 mm) | 2 psi @ 5 gpm (0.14 bar @ 19 lpm) |
| 158765 | 1/2” #10 Slim Line White/White w/o PR | 11.75” x 4.38” (298 mm x 111 mm) | 2 psi @ 5 gpm (0.14 bar @ 19 lpm) |
CAUTION: protect against freezing to prevent cracking of the filter and water leakage.
*NSF component listed
*NSF tested and certified
*NSF/ANSI standard 42 for material and structural integrity requirements
The 158005, 158006, 158098, 158114, 158115, 158120, 158125, 158126, 158129, 158131, 158149, 158185, 158195, 158196, 158204 and 158205 are Tested and certified by NSF International to NSF/ANSI Standard 42 for material and structural integrity requirements.
