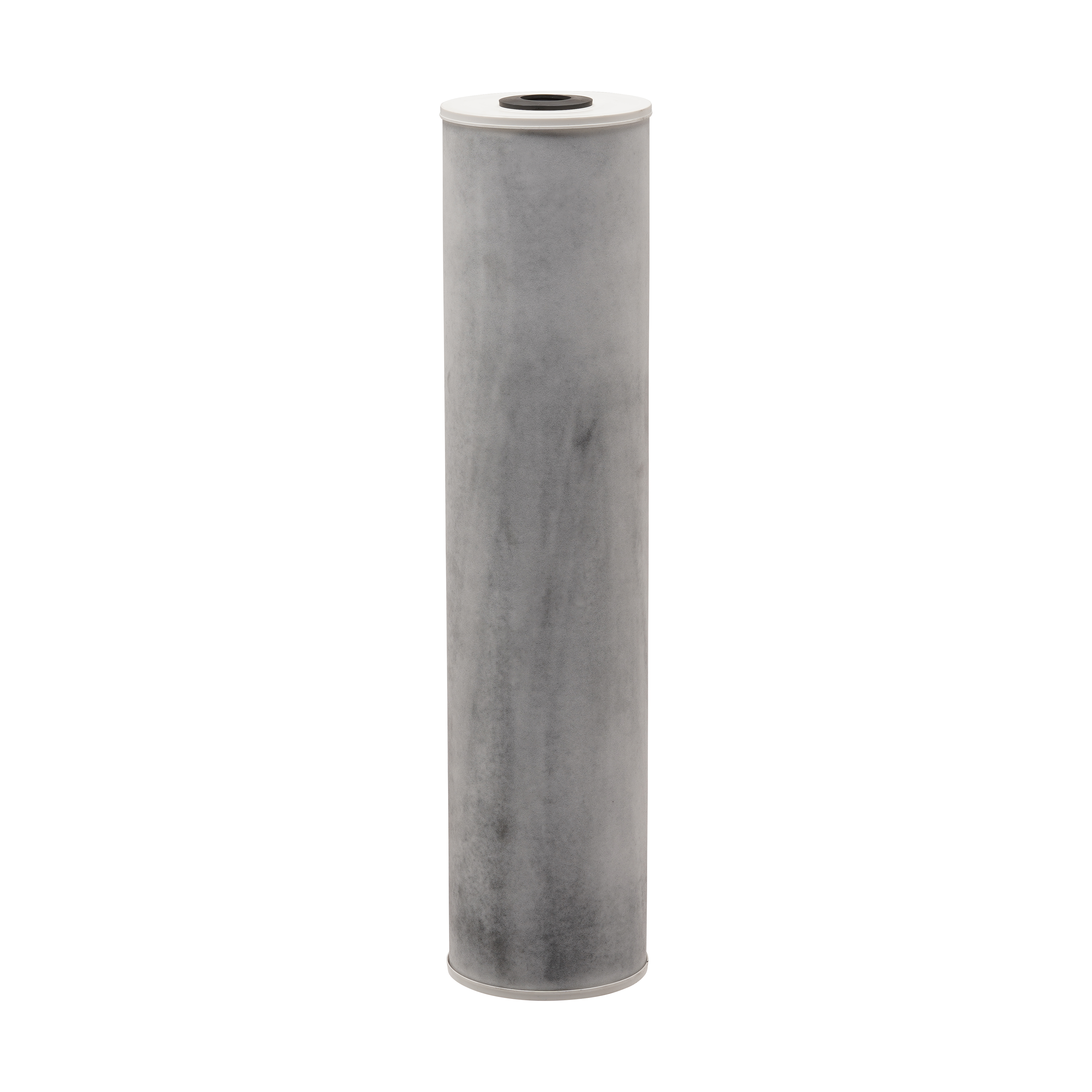

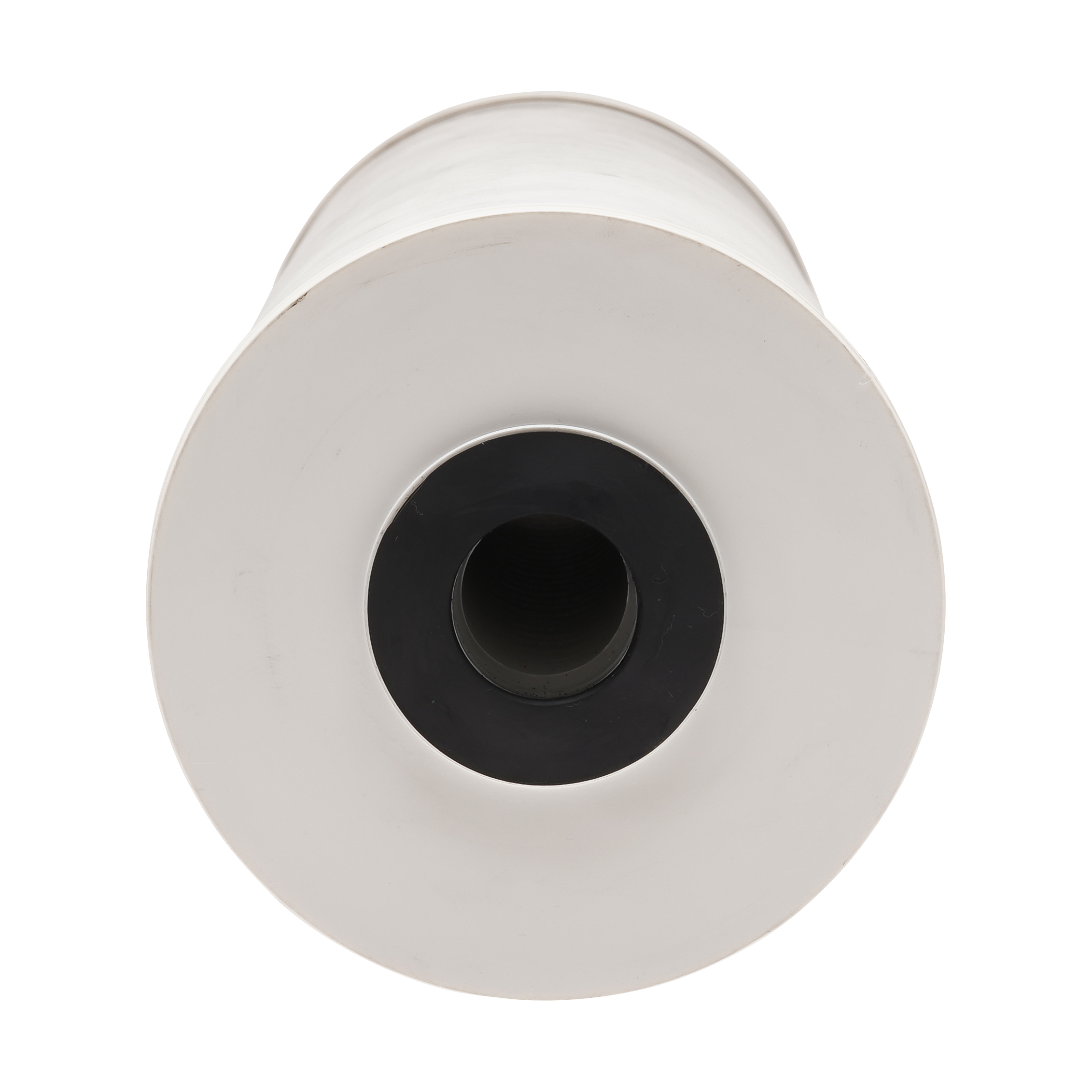

ChlorPlus Series
SUPERIOR CHLORINE AND CHLORAMINE REDUCTION
ChlorPlus carbon block cartridges help reduce sediment while providing greater chloramine performance capacities than granular carbon. They also significantly reduce the carbon fines found in many granular canisters. The CRFC20-BB heavy duty radial flow cartridges measure 4.5” in diameter and 20” long, which is ideal for higher flow rate and capacity applications. This cartridge incorporates a 70-micron porous polypropylene outer shell and a spun polypropylene-wrapped core. The bed of granular activated carbon (GAC) between the outer shell and core creates a unique radial flow design which effectively removes chloramine, has a low pressure drop, and helps reduce fines commonly seen in GAC-style cartridges. All of these cartridges utilize advanced activated carbon technology which allows superior chloramine and chlorine reduction. The range of sizes and capacities offered makes them ideal for both point of entry (POE) and point of use (POU) applications.
FEATURES/BENEFITS
Superior chloramine and chlorine reduction.
Unique design reduces carbon fines in filtered water.
ideal for POE or POU applications.
Available in variety of sizes.
SPECIFICATIONS
ChlorPlus
Filter media – Advances bonded PAC
Endcaps – Polypropylene
Inner Wrap/Core – Polyolefin
Outer Wrap/Core – Polyolefin
Netting – Polyethylene
Gaskets – Santoprene
Temperature Rating – 40-125 degree F (4.4-51.7 degree C)
CRFC-BB/CRFC20-BB
Filter media – Advances GAC
Endcaps – Polypropylene
Inner Wrap/Core – Spun Polypropylene
Outer Wrap/Core – Polyethylene
Post Filter – Spun Polypropylene
Gaskets – Santoprene
Temperature Rating – 40-125 degree F (4.4-51.7 degree C)
SPECIFICATIONS AND PERFORMANCE
MODEL # – PART # – MAXIMUM DIMENSIONS – RATING (NOMINAL)* – INITIAL (PSI) @ FLOW RATE (GPM)*
ChlorPlus 20 – 255417 – 2.88” x 20” (73mm x 508mm) – 1 Micron – 6 psi @ 2 gpm (0.41 bar @ 7.6 Lpm)
ChlorPlus 20BB – 355753-43 – 4.5” x 20” (114 mm x 508 mm) – 1 Micron – 6 psi @ 4.0 gpm (0.41 bar @ 15.2 Lpm)
CRFC20-BB – 155967-43 – 4.5” x 20” (114 mm x 508 mm) – 25 Micron – 2.5 psi @ 5 gpm (.17 bar @ 18.9 Lpm) <1 psi @2.5 gpm (<.07 bar @ 9.5 Lpm)
ChlorPlus 20 – 255417-43 – >100,000 gallons @ 2 gpm (>378,451L @ 7.6 Lpm) – 5,000 gallons @1.0 gpm (18,927L @ 3.8 Lpm) 2,000 gallons @ 2.0 gpm (7,570L @ 7.6 Lpm)
ChlorPlus 20BB – 355753-43 – >500,000 gallons @ 4gpm (>1,892,706L @ 15.2 Lpm) – 7,000 gallons @ 4.0 gpm 9 26,498L @ 15.2 Lpm)
CRFC20-BB – 155967 – 43 – >200,000 gallons @ 4 gpm (>757,082L @ 15.2 Lpm) – 25,000 gallons @ 2.5 gpm (94,635L @ 9.5 Lpm) 10,000 gallons @ 5.0 gpm (37,854L @ 18.9 Lpm
*Based on manufacturers internal testings.
NOTES – Some harmless bacteria will attack cellulose media cartridges. If your cartridge seems to disintegrate or has a musty or mouldy odour, switch to a synthetic media cartridge or consult the manufacturer. Estimated capacity tested at given flow rate using 2 ppm free available chlorine to 0.5 ppm breakthrough and 3 ppm chloramine 0.5 ppm breakthrough. Increased for rate may result in less effective chlorine reduction.
WARNING
For drinking water applications, do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
