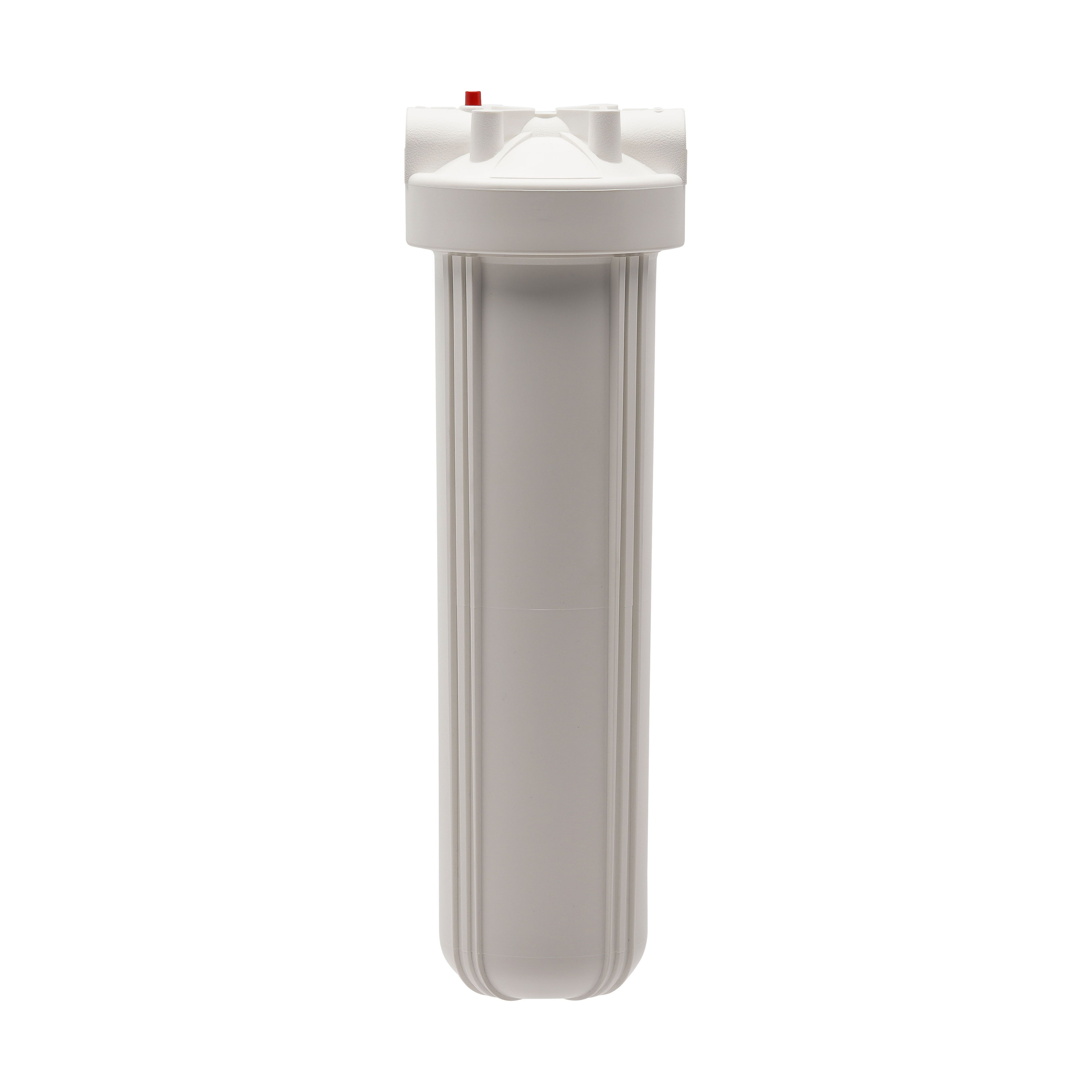

Big White Heavy Duty Series Filter Housings
Big White Heavy Duty Series Filter Housings - Image 2

Big White Heavy Duty Series Filter Housings

Product Type:

For Large-capacity, High Flow Applications

Features:

  • Large capacity housings suitable for high flow applications
  • Available in (10”) and (20”) lengths
  • Pressure relief/bleed on inlet side of cap
  • Accepts up to (4-1/2”) diameter cartridges

Big White Filter Housings offer versatility to meet all of your large-capacity filtration need, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate application. The cap in available with (3/4”), (1”) or (1-1/2”) NPT inlet and outlet ports. The (1-1/2”) internal port allows a greater volume of liquid to pass through the cap more rapidly. Big White Housings are compatible with a broad range of chemicals and are available with or without a pressure relief button. They accept a wide variety of (4-1/2”) diameter cartridges.



SPECIFICATIONS

Housing – Polypropylene
Cap – Polypropylene
Button Assembly – 300 Series stainless steel, EPDM, and Polypropylene
O-ring – Buna-N
Temperature Rating – 40-100 degrees F (4.4-37.8 degrees C)
Maximum Pressure – (10”) : 100 psi (6.9 bar)
                                    – (20”) : 90 psi (6.2 bar)




SPECIFICATIONS AND PERFORMANCE

PART DESCRIPTION MAXIMUM DIMENSIONS INITIAL (PSI) @ FLOW RATE (GPM)
166083 (1”) #10 Big White/White w/PR 13.19” x 7.28” (335 x 185 mm) 1 psi @ 15 gpm (0.07 bar @ 57 Lpm)
166141 (1”) #20 Big White/White w/o PR 23.24” x 7.28” (590 x 185 mm) 1 psi @ 15 gpm (0.07 bar @ 57 Lpm)
166142 (1”) #20 Big White/White w/PR 23.24” x 7.28” (590 x 185 mm) 1 psi @ 15 gpm (0.07 bar @ 57 Lpm)



CAUTION

Protect against freezing to prevent cracking of the filter and water leakage.
*NSF component listed
*NSF tested and certified
*NSF/ANSI standard 42 for material and structural integrity requirements
